What is JENNIFER View Server?

View server is a server that accesses the data server and displays the data to be monitored on the screen. You can select and monitor Domains on multiple data servers.

Download and unzip JENNIFER 5 package, then the server.view directory is created. This folder is the JENNIFER view server.

Specifications of JENNIFER View Server

As it is recommended to install the JENNIFER view server in the same system on which the data server is installed, the specifications are identical to Specifications of JENNIFER Data Server

Configuration of JENNIFER View Server Directories

The view server directories are configured as follows.

Start and Stop JENNIFER View Server in UNIX System

Configuration of JENNIFER View Server

Configuration of JENNIFER View Server

${JENNIFER_VIEW_SERVER_HOME}/bin/jennifer_view.sh contains settings required for starting the view server in UNIX system. In this file, you can configure JAVA_HOME, view server home, view server configuration file and view server JVM options. Configure the server using the variables listed below according to the environment in which JENNIFER is installed.

# ----------------------------------------------------------------------
# ----- Customizable Variables -----------------------------------------
# ----------------------------------------------------------------------
JAVA_HOME=/home/jennifer/jdk1.8.0_31
JENNIFER_VIEW_SERVER_HOME=/home/jennifer5/server.view
JENNIFER_VIEW_SERVER_CONF=${JENNIFER_VIEW_SERVER_HOME}/conf/server_view.conf
JENNIFER_VIEW_SERVER_LOG_CONF=${JENNIFER_VIEW_SERVER_HOME}/conf/logback.xml

# ----------------------------------------------------------------------
# ----- You can choice platform 'java' or 'php' or 'net' ---------------
# ----------------------------------------------------------------------
JENNIFER_PLATFORM=java

Configuration of Data Server Options

The configuration file contains the basic settings of the view server, such as where to save the temporary data or where to save the report data. By default, this file is located in conf/server_view.conf in the home directory of the view server. You can change the location and file name in the configuration file. Descriptions of the basic settings for server_view.conf are provided below.

server_port = 7900
db_path = ../db_view
report_path = ../report

Start JENNIFER View Server

1. Move to the bin directory in the view server.

cd /home/jennifer5/server.view/bin

2. In the bin directory, run startup_view.sh.

#
# ./startup_view.sh
#

3. Check whether the view server has started properly.

2014-11-28 10:31:40.366 [main] INFO  c.j.view.config.Configure - Configuration file: /home/jennifer5/server.view/conf/server_view.conf
2014-11-28 10:31:40.393 [main] INFO  com.jennifersoft.view.Main - Using JRE: /home/jennifer/jdk1.8.0_31/jre
2014-11-28 10:31:40.393 [main] INFO  com.jennifersoft.view.Main - Jennifer view server home: /home/jennifer5/server.view
2014-11-28 10:31:40.394 [main] INFO  com.jennifersoft.view.Main - PlatForm : java
2014-11-28 10:31:40.547 [main] INFO  com.jennifersoft.view.Main - View server version: 5.0.5
2014-11-28 10:31:40.547 [main] INFO  com.jennifersoft.view.Main - System property: user.timezone=Asia/Seoul,file.encoding=UTF-8
2014-11-28 10:31:40.576 [main] INFO  com.jennifersoft.view.Main - War Path : /home/jennifer5/server.view/war/jennifer.server.view-5.0.5.war
2014-11-28 10:31:40.681 [main] INFO  org.eclipse.jetty.server.Server - jetty-7.6.15.v20140411
2014-11-28 10:31:40.707 [main] INFO  o.e.j.webapp.WebInfConfiguration - Extract jar:file:/home/jennifer5/server.view/war/jennifer.server.view-5.0.5.war!/ to /home/jennifer5/server.view/temp/webapp
2014-11-28 10:31:42.256 [main] INFO  / - Initializing Spring root WebApplicationContext
2014-11-28 10:31:46.149 [main] INFO  o.e.j.server.handler.ContextHandler - started o.e.j.w.WebAppContext{/,file:/home/jennifer5/server.view/temp/webapp/},/home/jennifer5/server.view/war/jennifer.server.view-5.0.5.war
2014-11-28 10:31:46.238 [main] INFO  / - Initializing Spring FrameworkServlet 'Spring MVC Dispatcher Servlet'
2014-11-28 10:31:49.574 [main] INFO  o.e.jetty.server.AbstractConnector - Started SelectChannelConnector@0.0.0.0:7900

Stop JENNIFER View Server

1. Move to the bin directory in the view server.

cd /home/jennifer5/server.view/bin

2. In the bin directory, run shutdown_view.sh.

#
# ./shutdown_view.sh
#

3. When the view server is properly stopped, the following log will be displayed.

2014-11-28 10:33:27.456 [main] INFO  c.j.view.config.Configure - Configuration file: /home/jennifer5/server.view/conf/server_view.conf
2014-11-28 10:33:27.481 [main] INFO  com.jennifersoft.view.Main - Using JRE: /home/jennifer/jdk1.8.0_31/jre
2014-11-28 10:33:27.481 [main] INFO  com.jennifersoft.view.Main - Jennifer view server home: /home/jennifer5/server.view
2014-11-28 10:33:27.481 [main] INFO  com.jennifersoft.view.Main - shutdown(int status) - [0]
2014-11-28 10:33:28.756 [Thread-0] INFO  com.jennifersoft.view.Main - shutdown(int status) - [0]

Start and Stop JENNIFER View Server in Windows System

Configure JENNIFER View Server

Configuration of JENNIFER View Server

%JENNIFER_VIEW_SERVER_HOME%/bin/jennifer_view.sh contains settings required for starting the view server in Windows system. In this file, you can configure JAVA_HOME, view server home, view server configuration file and view server JVM options. Configure the server using the variables listed below according to the environment in which JENNIFER is installed.

rem ----------------------------------------------------------------------
rem ----- Customizable Variables -----------------------------------------
rem ----------------------------------------------------------------------
set JAVA_HOME=c:\jdk18
set JENNIFER_PLATFORM=java
set JENNIFER_VIEW_SERVER_HOME=C:\work\jennifer5\server.view
set JENNIFER_VIEW_SERVER_CONF=%JENNIFER_VIEW_SERVER_HOME%\conf\server_view.conf
set JENNIFER_VIEW_SERVER_LOG_CONF=%JENNIFER_VIEW_SERVER_HOME%\conf\logback.xml
rem ----------------------------------------------------------------------

Configure Data Server Options

The configuration file contains the basic settings of the view server, such as where to save the temporary data or where to save the report data. By default, this file is located in conf/server_view.conf in the home directory of the view server. You can change the location and file name in the configuration file. Descriptions of the basic settings for server_view.conf are provided below.

server_port = 7900
db_path = ../db_view
report_path = ../report

Start JENNIFER View Server

1. Move to the bin directory in the view server.

cd C:\work\jennifer5\server.view\bin

2. In the bin directory, run startup_view.bat.

C:\work\jennifer5\server.view\bin> startup_view.sh

3. Check whether the view server has started properly.

2014-07-22 18:07:37.284 [main] INFO  c.j.view.config.Configure - Configuration file: C:\work\jennifer5\server.view\conf\server_view.conf
2014-07-22 18:07:37.355 [main] INFO  com.jennifersoft.view.Main - Using JRE: c:\jdk18\jre
2014-07-22 18:07:37.355 [main] INFO  com.jennifersoft.view.Main - Jennifer view server home: C:\work\jennifer5\server.view
2014-07-22 18:07:37.355 [main] INFO  com.jennifersoft.view.Main - PlatForm : java
2014-07-22 18:07:37.567 [main] INFO  com.jennifersoft.view.Main - View server version: 5.0.1
2014-07-22 18:07:37.567 [main] INFO  com.jennifersoft.view.Main - System property: user.timezone=Asia/Seoul,file.encoding=UTF-8
2014-07-22 18:07:37.680 [main] INFO  org.eclipse.jetty.server.Server - jetty-7.6.15.v20140411
2014-07-22 18:07:38.033 [main] INFO  / - Initializing Spring root WebApplicationContext
2014-07-22 18:07:39.318 [main] INFO  o.e.j.server.handler.ContextHandler - started o.e.j.w.WebAppContext{/,file:/C:/work/jennifer5/server.view/webapp/}
2014-07-22 18:07:39.417 [main] INFO  / - Initializing Spring FrameworkServlet 'Spring MVC Dispatcher Servlet'
2014-07-22 18:07:40.307 [timerFactory] INFO  c.j.view.timer.LogTimerTask - --------- Data Server Info Start -------------
2014-07-22 18:07:40.307 [timerFactory] INFO  c.j.view.timer.LogTimerTask - --------- Data Server Info End -------------
2014-07-22 18:07:40.830 [main] INFO  o.e.jetty.server.AbstractConnector - Started SelectChannelConnector@0.0.0.0:7900

Register JENNIFER View Server as a Windows Service

1. Open a cdm.exe window as an administrator.

2. In the server.view\bin directory, run reg_service.bat.

The default value of a service name to be registered is "jennifer_view". If you want to change this value, you are required to create the following INI file in the same folder before running reg_service.bat.

* For 32 bit
   jenniferview32.ini

* For 64 bit
   jenniferview64.ini

Following shows the content of an INI file having the same value as the default value.

[default]
serviceName=jennifer_view
servicePath=jennifer_view.bat

When running reg_service.bat file after changing the serviceName value, the name of JENNIFER view server displayed to the service administrator is changed.

Stop JENNIFER View Server

1. Move to the bin directory in the view server.

cd C:\work\jennifer5\server.view\bin

2. In the bin directory, run shutdown_view.bat.

C:\work\jennifer5\server.view\bin> shutdown_view.bat

3. When the view server has properly stopped, the following log will be displayed.

2014-07-22 18:14:55.884 [main] INFO  c.j.view.config.Configure - Configuration file: C:\work\jennifer5\server.view\conf\server_view.conf
2014-07-22 18:14:55.918 [main] INFO  com.jennifersoft.view.Main - Using JRE: c:\jdk18\jre
2014-07-22 18:14:55.936 [main] INFO  com.jennifersoft.view.Main - Jennifer view server home: C:\work\jennifer5\server.view
2014-07-22 18:14:55.936 [main] INFO  com.jennifersoft.view.Main - shutdown(int status) - [0]
2014-07-22 18:14:57.473 [Thread-1] INFO  com.jennifersoft.view.Main - shutdown(int status) - [0]

Access to Screen

Using a browser that supports HTML5 (currently Chrome), access the view server. The URL to access is http://jennifer_view_server_ip:7900/.

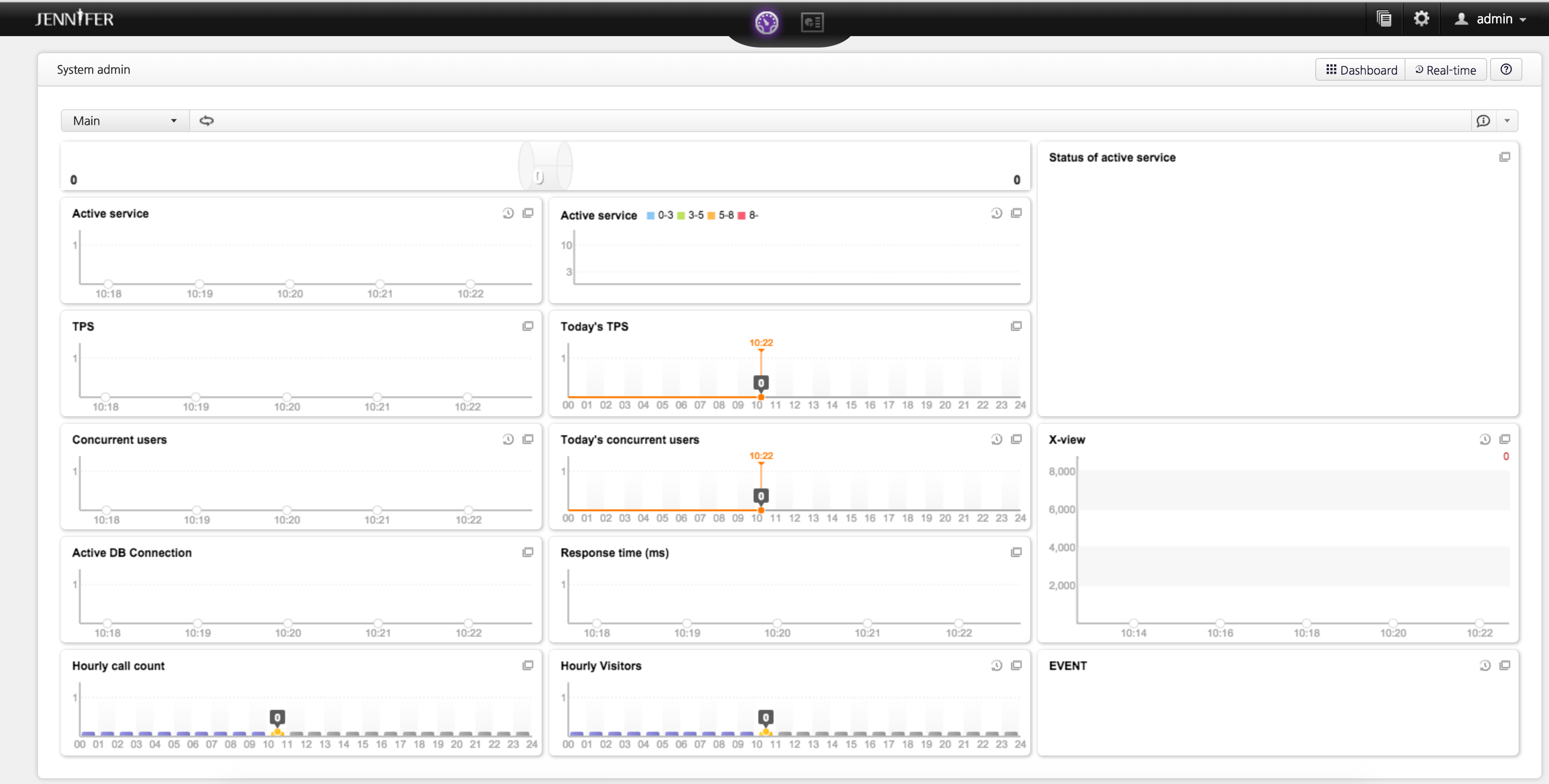

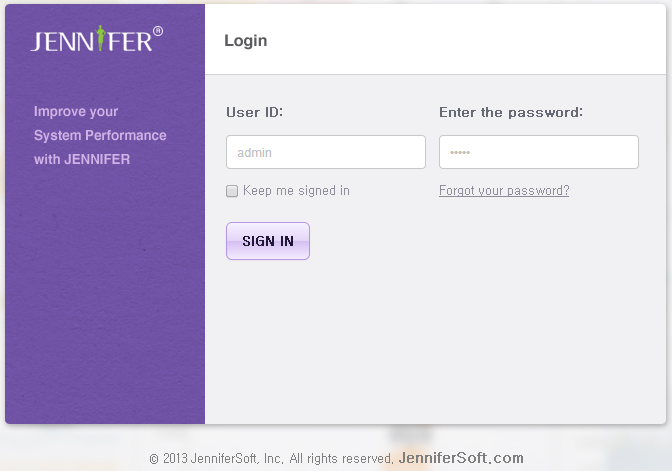

Using the default User ID (admin) and Password (admin), access the view server. When the default Domain ID is set to 5000, you can see the following screen.

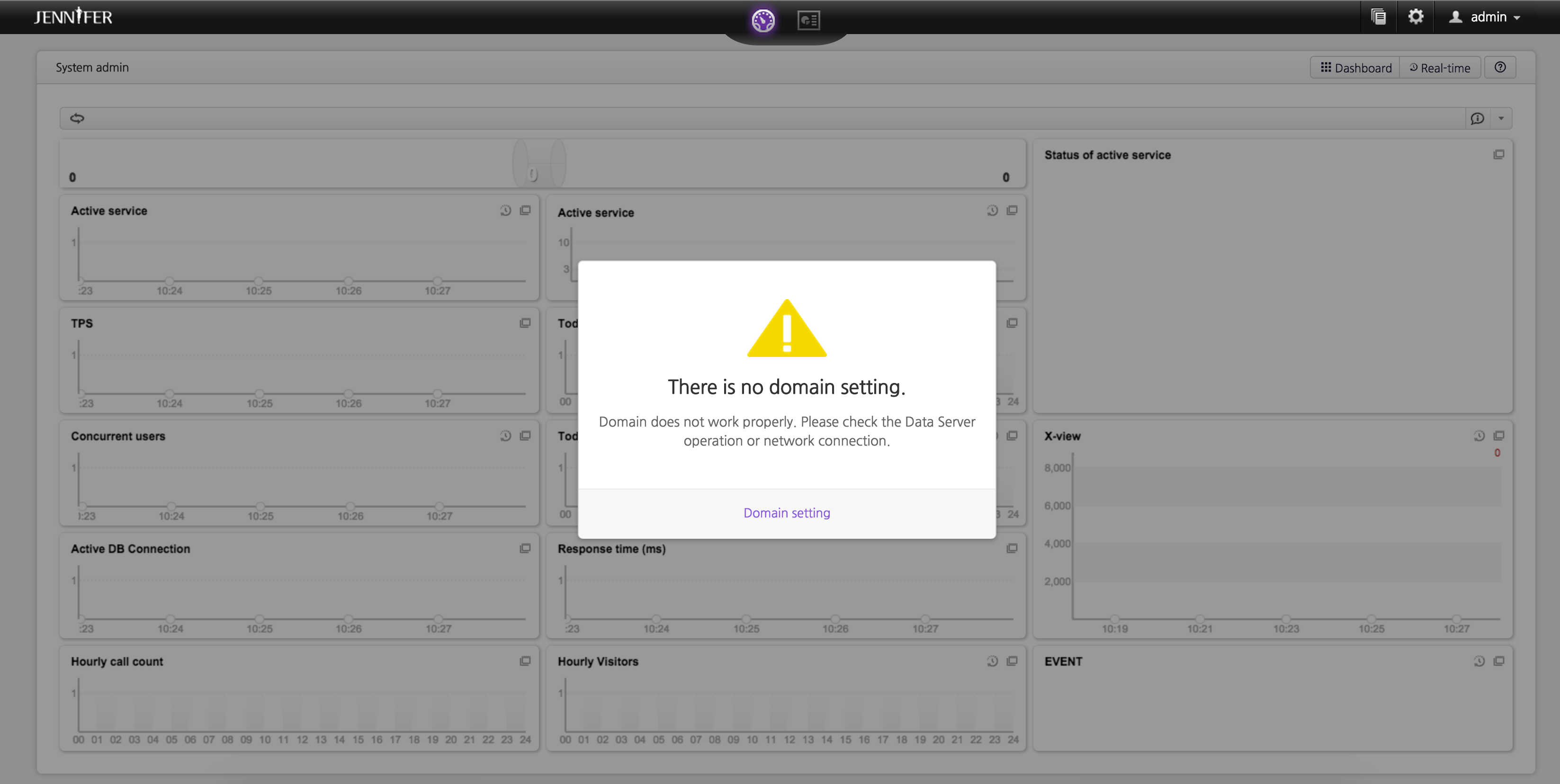

When the "No Domain Configuration Information" message is displayed, determine which data server's Domain to access and register the Domain of the applicable data server manually.

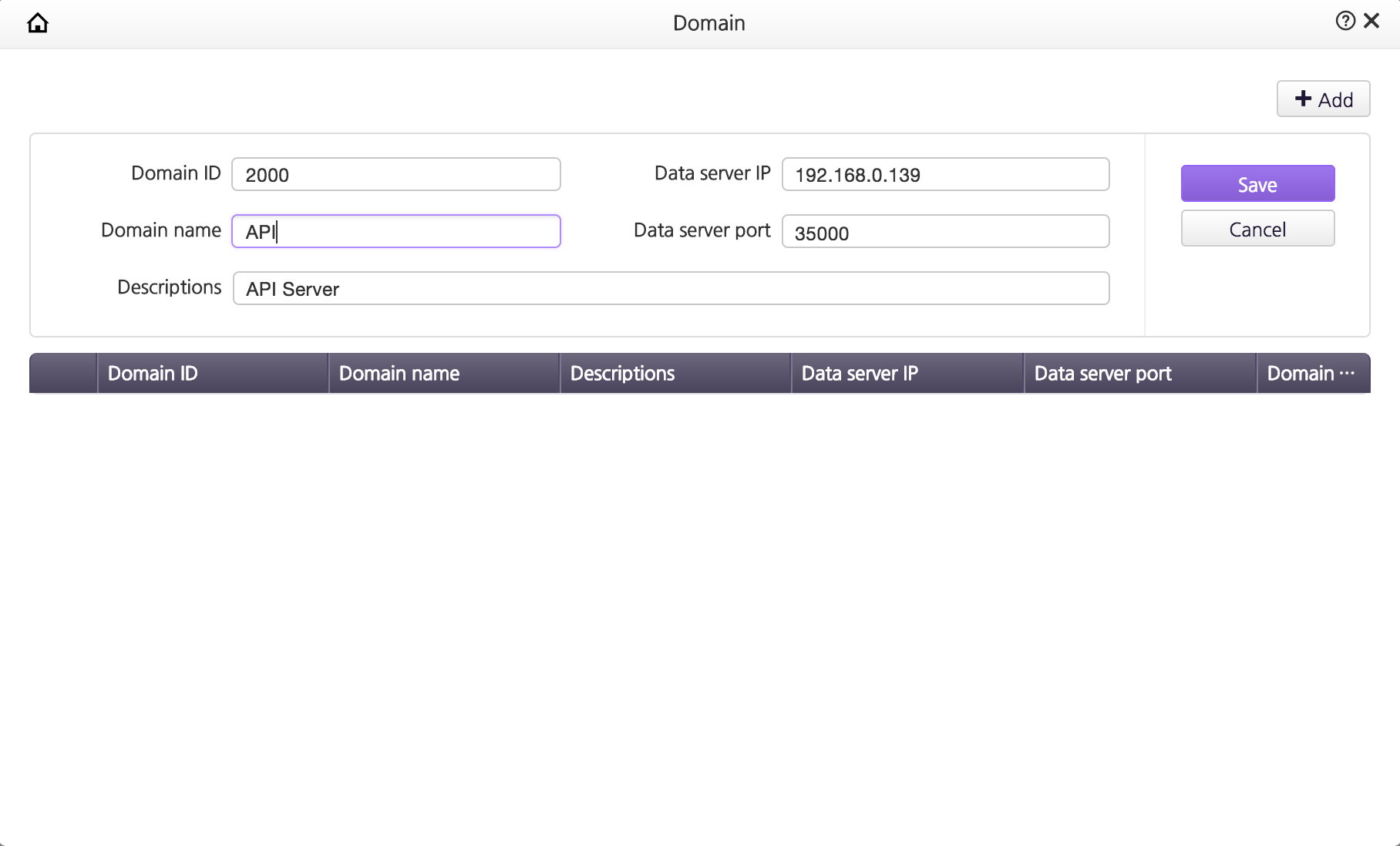

You can register a Domain from the Manage Domain menu on the Management screen.

When registering a Domain server in the View Server, the following message is displayed in the View Server log.

2014-11-28 10:43:39.693 [Thread-1] INFO  c.j.data.nio.DataServerProtocol$1$1 - View server session is created. domainId=1000, connection=Local:192.168.0.81:5000-Remote:192.168.0.81:54697
2014-11-28 10:44:07.040 [Global Timer:Running:com.jennifersoft.data.mng.DomainListLogger$1] INFO  c.j.data.mng.DomainListLogger$1 - Available domain: 1000

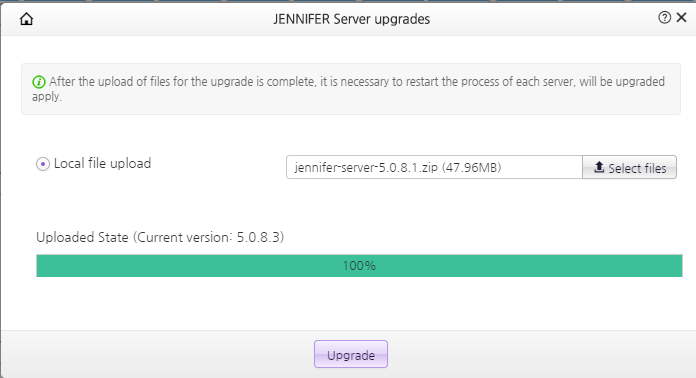

Upgrade JENNIFER Data Server and View Server

1. Download a file of the version to upgrade.

2. Navigate to the Upgrade JENNIFER Server menu on the JENNIFER configuration screen, and select the downloaded file.
